XtraASK™ 500
XtraASK™ 500 is an advanced Digital Conference System and Audio Local speech reinforcement Solution, offers local speech reinforcement in all your large conference rooms and training rooms to enhance comprehension. Excellent audio clarity, uniform spread of far site audio as well as speech reinforcement help your teams to accomplish more.
- XtraASK 500 is a Digital Conference System consist of Digital Controller with Delegate & Chairman flush type on table terminals, Digital Connector for discreet installation & Power Hub for distributing audio & control signal over category cables.
- First Digital Conference System to support the application of splitting and merging of the conference & training rooms, with 4 channels of audio grouping output, can be split into an independent system using in multiple rooms, or can be used at the same time as one large system, which is convenient and flexible.
- Multiple backup mechanisms ensure the safe, stable and reliable operation of the system, and ensure that the meeting goes on smoothly without being interrupted, satisfying the stringent requirements of high-end meetings for equipment.
- Support dual-server hot stand-by function. When the current server goes down, it can automatically switch to the stand-by server.
- Support dual-server hot stand-by function of the management software. When the current computer doesn’t work, it will automatically switch to the stand-by computer.
- The wired conference terminal supports star connection, hand-in-hand connection and mixed connection, and all devices are connected by digital network cables, which is convenient for construction and management.

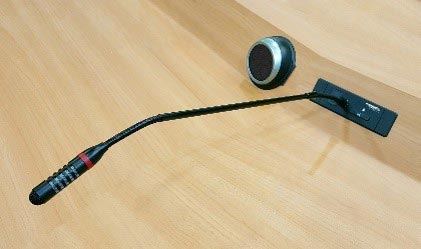

Premium Discussion Terminal
| Product | XtraASK 500 Premium Discussion Terminal |
|---|---|
| Mounting | Desktop/seat armrest flush-mounting installation |
| Panel Dimension (L×W×H) | 83×40×3.5mm |
| Product Dimension (L×W×H) | 83×40×44mm |
| Color | Black |
| Status Indicator | LED Indicator |
| MIC | |
| Acoustic Frequency Response | 20Hz~20kHz |
| MIC Type | Heart pattern directional electret |
| MIC Stem Length | 410mm (standard), 310mm/510mm (optional) |
| Sensitivity | -46 dBV/Pa |
| VOX Sensitivity | H/M/L(76dB/80dB/82dB) |
| Input Impedance | 2KΩ |
| Directivity | 0°/180°: >20 dB (1 kHz) |
| Equivalent Noise Level | 20dBA(SPL) |
| Max SPL | 125dB (THD< 3 %) |
| Interface | 1× RJ45 Connector |
| Power | 24V |
| Max Power Consumption | 6.4W |
| Weight | 0.16kg |
| Operating Temperature | 0~45°C |
| Storage Temperature | -20~50°C |
Congress Server
| System capacity | 65025 |
|---|---|
| Audio frequency | 20Hz～20kHz |
| response | >96dBA |
| Signal-to-noise ratio | >85dB |
| Channel isolation | >94dB |
| Dynamic Range | 0.05% |
Total harmonic distortion
| Audio interface | 1 balanced audio input (XLR), 1 balanced audio output (XLR), 2 unbalanced audio output (RCA), |
|---|---|
| Maximum audio output | 4-channel grouped audio output (Phoenix) LINE OUT: +20 dBu unbalanced, BLANCE OUT: +20 dBu balanced MIXER OUT: +20 dBu balanced, AUDIO OUT 1～4: +20 dBu balanced |
| Output impedance | >1kΩ |
| Central control method | RS-232 |
| PC communication method | TCP/IP |
| Camera control method | RS-485 |
| Wired congress terminal | RJ45—4, adopt own power supply protocol |
| interface Network | RJ45—2, support standard POE power |
| Interface Recording | supply USB (U disk format: FAT32) |
| interface Recording file size | 0.8M/min |
| Supported cameras | 8 (SD) |
| Video input interface | RCA×8(1Vp-p 75Ω) or SDI×4 |
| Video output interface | （SD/HD/3G） RCA×4(1Vp-p 75Ω) or |
| Camera Tracking Protocol | SDI×1（SD/HD/3G） PELCO-P/PELCO-D/VISCA |
| Display | OLED (61mm×37mm) |
| Installation | Desktop or 19′ cabinet installation |
| Power Supply consumption | AC100～240V，50/60Hz |
| Dimensions (L×W×H) | 483×437×90mm |
| Operating temperature | -0~45°C |
| Storage temperature | -20~50°C |
Power Hub
| System Capacity | 65,025 |
|---|---|
| Standard Capacity | 65 Terminals (turn off built-in speaker)/25 Terminals(turn on built-in speaker) |
| Status indication | AC 100~240V,50/60Hz |
| Power | 150W |
| Max Power Consumption | 150W |
| Operating Temperature | 0~45°C |
| Storage Temperature | -20~50°C |
| Dimensions(L×W×H) | 238mm×165mm×45mm |
| Installation | Hidden installation or cabinet installation |
| Weight | 2kg |
| Datasheet | Downloads |
|---|---|
| Product Presentation | Downloads |
| User Manual | Downloads |
| Video | Downloads |
| Additional Resources | Downloads |

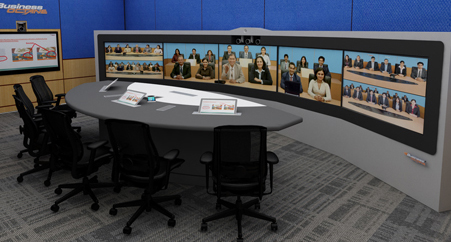

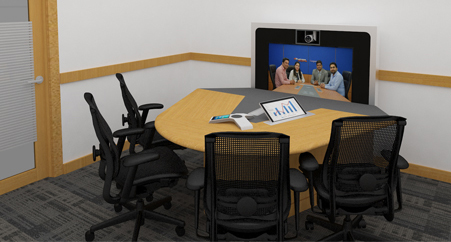

Huddle Rooms

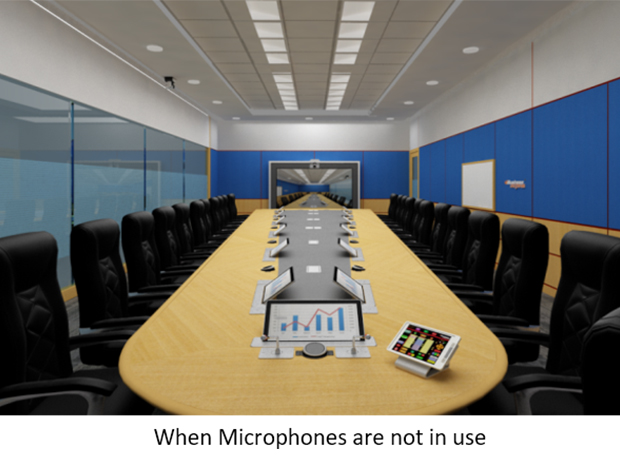

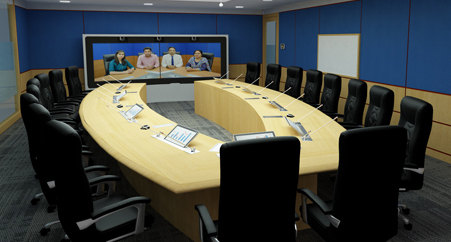

Board Rooms

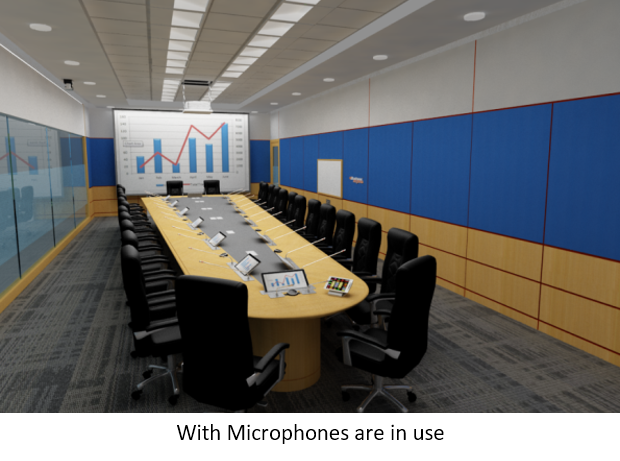

Huddle Rooms

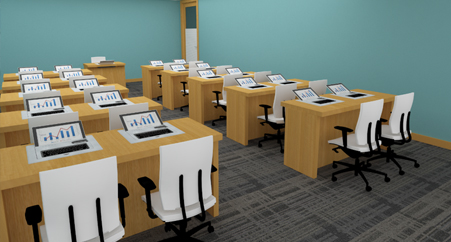

Class Rooms/Training Rooms
